CCS Charge Module for Kyodo EP860

CCS-EP860

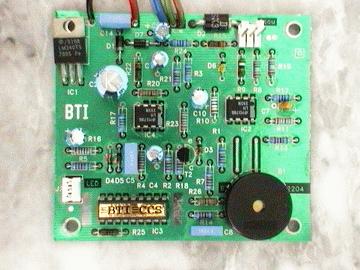

This CCS Charge Module is designed for the charge station of the portable radio EP860. The original Kyodo print can be replaced by the CCS-EP860 without additional adjustments!
The CCS860 can charge the two different battery packs and selects the appropriat charge current automatically. Also batteries with diodes (EX-Schutz) can be charged.

 .


   Technical Data:

   Power supply:               Rectified line, 100/120 Hz

   Number of cells:           8

   Battery voltage:            9,6 V

   Charge current:            750 mA

   Status indicator:           optical-2 LED, audible-Buzzer (4kHz, 70dB)

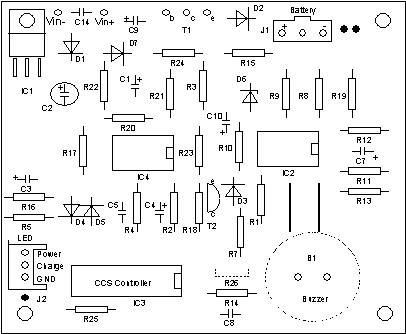

   Print:                              85x75mm, double layer, silk screen

   Charge controller:        CCS9310B2

The CCS Charge Module is also available as Evaluation Board CCSEB and in the kit version CCSB2!
