CCS9310B2 Charge Controller

Not recommended for new design


CCS Basic Features:
- Microcomputer controlled quickcharge up to 100% exactly
- CCS charge termination
- No overcharge, no memory effect
- Extended battery life
- Independent of battery type: NiCd, NiMH, Lead Acid, etc.
- Number of cells unlimited
- Automatic recharge, MC controlled
- Standby operation
- Independent of precharging state, no discharge needed
- Reliable function also with protection diodes in the battery pack
- Simple handling, fail-safe by watchdog control
- Independent of external influences (e.g. temperature)
- Improved start up characteristic on empty cells
- Battery fault detection (LED & buzzer signal)


Characteristics:

Input voltage:        3.0V to 5.5V
Low power:          < 2 mA
Package:               PDIP 18, SOIC 18, SSOP 20

Operating temperature:
Commercial:                         0 to   +70 °C
Industrial:                          -40 to   +85 °C
Storage temperature:          -65 to +150 °C

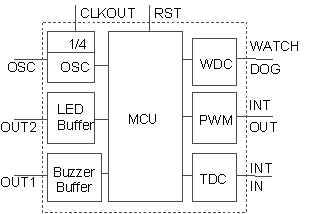

Block Diagram:

Pin Configuration:

1

OUT 1 (Buzzer)

13

OUT 2 (LED)

2

WATCH

14

VDD

3

F.U.

15

CLKOUT

4

RST

16

OSC

5

GND

17

INTOUT, Integrator

6-12

F.U.

18

INTIN, Integrator



Applications for the Computer-Charging-System
Alarm Systems, Cellular Phones, Computer, Electric Vehicles, HiFi, Hobby, Instruments, Lamps,
Medical Electronics, Pager, Portables, Radio, Solar Systems, Telephone, Tools, Toys, UPS, Video..
