Absolute

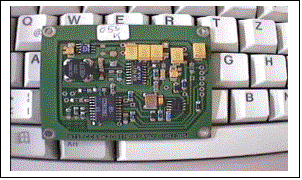

Maximum Ratings: The CCS9620EB Evaluation Board is a battery charger modul suitable for all common battery chemistries.
With a few settings only it is possible to charge batteries of different chemistries, different capacities and different battery voltages with one and the same charging circuit.
Absolute
Maximum Ratings:
|
Supply Voltage |
25VDC |
|
Vbat to GND |
-3V<
Vbat <30V |
|
Vc,Prog, OVP |
8V |
|
Icharge (average) |
1,5A |
|
Icharge (pulse-peak) |
2A |
|
Ambient Temp |
-10..+60°C |
Technical
Data:
|
Dimensions |
65 x 55 x 7 mm |
|
Weight |
17g |
|
|
min. |
typ. |
max. |
Value |
|
Standby current without load |
|
8 |
|
mA |
|
LED current |
10@2,2V |
12@1,6V |
18@5V |
mA |
|
5V
output current |
|
|
50 |
mA |
|
Ambient Temp. |
-10 |
|
+60 |
°C |
|
Efficiency |
|
|
|
|
|
Charging current |
|
800 |
1200 |
mA |
|
Nominal charge duration |
1* |
|
4* |
h |
|
Battery capacity |
|
|
5 |
Ah |
* full charge
of an empty battery
Universal
Configuration:
|
|
|
Component |
|
|
Battery type |
NC, NiMH, Lead Acid, LiIon |
|
|
|
Battery voltage |
0-20V, 1-10 cells (NC) |
R9 |
|
|
Battery capacity |
up to 5Ah |
|
|
|
Max.
voltage |
|
R17 |
at Lead Acid or LiIon |
|
Charging current |
Up to 1A |
R1 |
|
|
MT settings (charge mode) |
1h, 2h, 3h, 4h |
|
Charge mode |
|
Charge controller |
CCS9620 |
IC1 |
|
CCS9620EB
