CCS96205 Charge Controller

Special Features:

- Charge inhibit

- Power source, DC or AC (rectified 50/60 Hz)

- MT settings, wide battery capacity range (1:16)

- External charge enable, external buzzer enable

- Serial data out, PC connection

CCS Basic Features:
- Microcomputer controlled quickcharge up to 100% exactly
- CCS charge termination
- No overcharge, no memory effect
- Extended battery life
- Independent of battery type:  SLA (sealed lead acid), Lead Acid, NiCd, NiMH,etc.
- Number of cells unlimited
- Automatic recharge, MC controlled
- Standby operation
- Independent of precharging state, no discharge needed
- Reliable function also with protection diodes in the battery pack
- Simple handling, fail-safe by watchdog control
- Independent of external influences (e.g. temperature)
- Improved start up characteristic on empty cells
- Battery fault detection (LED & buzzer signal)

Characteristics:

Input voltage:        3.0V to 5.5V
Low power:          < 2 mA
Package:               PDIP 18, SOIC 18, SSOP 20
Operating temperature:
Commercial:                            0 to  +70 °C
Industrial:                            -40 to  +85 °C
Storage temperature:           -65 to +150 °C

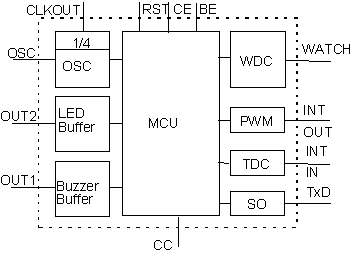

     Block Diagram:



Pin Configuration:

1

OUT 1 (Buzzer)

10

TxD

2

WATCH

11

F.U.

3

F.U.

12

CC

4

RST

13

OUT 2 (LED)

5

GND

14

VDD

6

MT 1

15

CLKOUT

7

MT 2

16

OSC

8

BE, Buzzer-Enable

17

INTOUT, Integrator

9

CE, Charge-Enable

18

INTIN, Integrator



Applications for the Computer-Charging-System
Alarm Systems, Cellular Phones, Computer, Electric Vehicles, HiFi, Hobby, Instruments, Lamps, Medical Electronics, Pager, Portables, Radio, Solar Systems, Telephone, Tools, Toys, UPS, Video..

CCS96205 Datasheet Download

CCS IC Selection Guide
